RUS系列输送机链
RUS系列输送机链
RUS系列输送机链
￥0.00
- 产品详情
- 产品参数

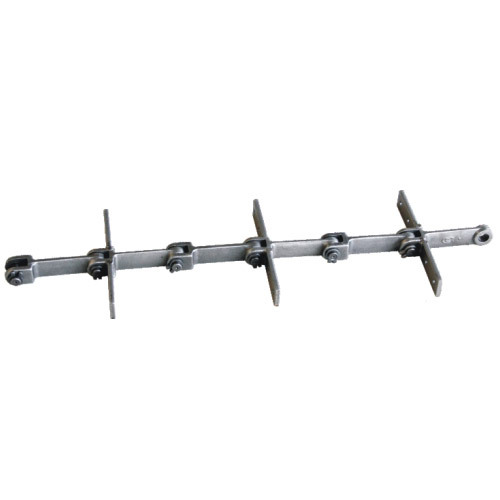

一、RUS系列输送机链
二、技术参数
企业链号 | 节距 | 滚子直径 | 销轴直径 | 链槽内宽 | 链节宽 | 链节壁厚 | 刮板宽 |
P | R | d | W | H | T | L | |
RUS160 | 100.0 | 18.0 | 17.0 | 20.0 | 35.0 | 10.0 | 140.0 |
RUS200 | 125.0 | 23.0 | 20.0 | 26.0 | 45.0 | 12.0 | 170.0 |
RUS250 | 125.0 | 23.0 | 20.0 | 26.0 | 45.0 | 12.0 | 210.0 |
RUS320 | 160.0 | 28.0 | 25.0 | 30.0 | 55.0 | 14.0 | 270.0 |
RUS400 | 160.0 | 28.0 | 25.0 | 30.0 | 55.0 | 14.0 | 350.0 |
RUS500 | 200.0 | 35.0 | 30.0 | 38.0 | 70.0 | 20.0 | 420.0 |
RUS600 | 200.0 | 35.0 | 30.0 | 38.0 | 70.0 | 20.0 | 520.0 |
RUS700 | 250.0 | 44.0 | 40.0 | 42.0 | 80.0 | 26.5 | 610.0 |
RUS800 | 250.0 | 44.0 | 40.0 | 42.0 | 80.0 | 26.5 | 710.0 |
价格
￥0.00
